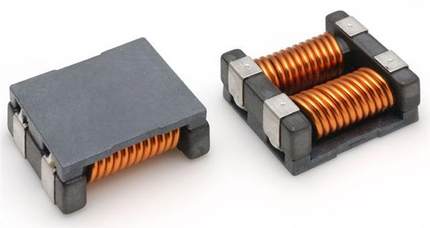

TDK Corporation ACM1513-551-2PL-TLHF CMC 10A 2LN 550 OHM SMD
NEW & Original
Warranty 180days
Before payment please contact our sales, we would offer a reasonal price base on the exact qty you need.
If the price is "0", please contact our sales to RFQ too. thanks for your attention...
Ms. Yuki Quan
Hi-tech (HK) Electronics Co.,Ltd
Tel:+86-0755-82497980
Skype: yukiquansky
Cell/whatsapp:+8618302066449
Email: yuki@componentsindustry.com
URL: http://www.hitech-ic.com/english/
https://www.componentsindustry.com/
| Manufacturer |
TDK Corporation |
|
|---|---|---|
| Manufacturer Part Number |
ACM1513-551-2PL-TLHF |
|
| Description | CMC 10A 2LN 550 OHM SMD | |
| Detailed Description |
2 Line Common Mode Choke Surface Mount 550 Ohms @ 100MHz 10A DCR 4 mOhm |
| Datasheets |
ACM1513 Series, Commercial |
|
|---|---|---|
| Product Training Modules |
EMC Components |
|
| Mfg CAD Models |
ACM1513-551-2PL-TLHF.stp |
|
EDA / CAD Models
|
Download from Ultra Librarian | |
| Online Catalog |
ACM Series |
|
| Product Attributes | Find Similar Products | Select All | |
| Categories | Filters | |
|---|---|---|
| Common Mode Chokes | ||
| Manufacturer | TDK Corporation | |
| Series | ACM | |
|
Packaging
|
Tape & Reel (TR)
|
|
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 550 Ohms @ 100MHz | |
| Current Rating (Max) | 10A | |
| DC Resistance (DCR) (Max) | 4 mOhm | |
| Voltage Rating - DC | 50V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.591" L x 0.512" W (15.00mm x 13.00mm) | |
| Height (Max) | 0.236" (6.00mm) | |
| Package / Case | Horizontal, 4 PC Pad |
